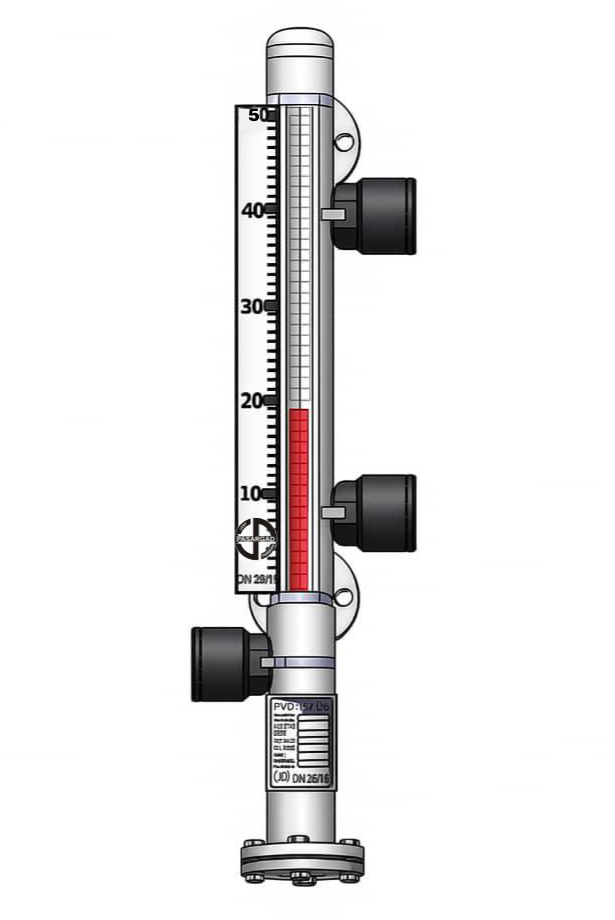

Chamber OD :
60 mm
mounting positioning : Side -
Side
Process connection :
Flanges
or thread
DN15-100 or 1" - 4"ANSI
Distance Centre to Centre : 30 mm 6000 mm
Material :
Stainless steel (304,316)
Nominal Pressure :
16 - 250 bar
Temperature rang :
-30 C to 500 C
Magnetic roller :
AL
Housing :
AL
Float mat :
Stainless steel (304,316,Ti)
Product type :
Flow meter
Product line name : JTP40
Product positioning : For basic applications
Measuring principle : Variable section float
Measured product : Liquids,
Gases
Operating pressure : max. 10
barg
Process temperature : 0…+100°C/+32…+212°F
Measuring tube :
Borosilicate
glass
Flange fittings :
DN15...50ASME (B 16.5) :
½...2"
Threaded connections : Female : G½, G¾, G1, G1½,
G2 ½ NPT, ¾ NPT, 1 NPT, 1½ NPT, 2 NPT
Hygienic fittings : Clamp
: DN15, DN25, DN40,
DN50
Tri-Clamp :
½", 1", 1½", 2" DN15,
DN25, DN40, DN50 : 25 mm, 38 mm, 51 mm
